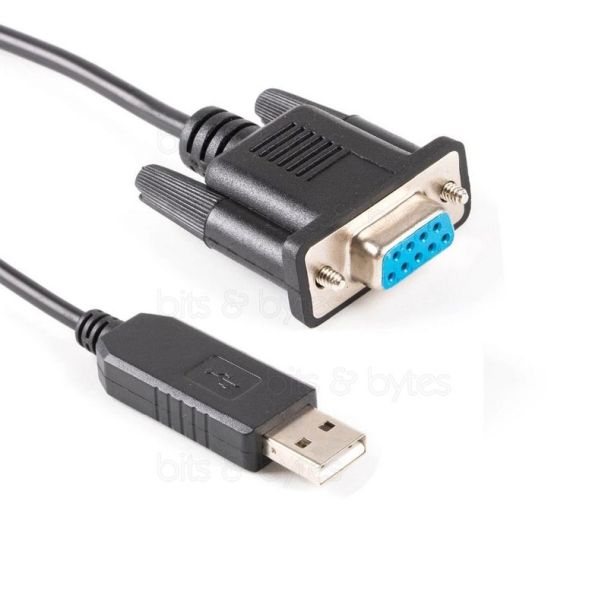

USB to RS232 Serial (Straight) Adapter
with FTDI Chip inside USB board
This cable is mostly specially used in PC (host) to device (slave) communication. This cable also can be used for PC to control a smart TV(as nowadays the TV is a computer)
- Integrated FTDI USB UART FT232RL+ZT213 Chip
- Baud Rate up to 921.6Kbps
- COM Port assignments maintained across reboot
- USB-powered - no external power adapter required
- Compatible with USB 1.1 or 2.0 Ports
- Compatible with Windows, Mac OS, and Linux
- Single cable design for portability
- Null Modem Pinout: DB9
- Pin 2: RX (orange)
- Pin 3: TX (yellow)
- Pin 5: GND (black)
- Pin 7: RTS (brown)
- Pin 8: CTS (green)
- Cable Length: 1.8Meter
- Support EEPROM, support Vendor ID re-write, support Mprog3.5
- Support FTDI VCP driver and D2XX driver
- Neutral packing: zipper PE bag for each.
- CE, RoHS compliance
- Perfect for IT Administrators looking to add legacy functionality to newer notebooks, PCs, and servers that lack an integrated RS232 port.
- Connect, monitor and control industrial/automotive sensors and equipment.
- Connect bar code scanners, receipt printers and other point of sale devices.
- Connect and program LED and Digital signage boards with serial communication ports.
- Connect a satellite receiver, serial modem, or PDU.
- USB to RS232 Serial Adapter
- USB2.0 RS232 to DB9 female cable
- FT232RL+ZT213 chip
- USB2.0 standard, full speed
- Baud Rate up to 921.6Kb
- Standard DB9 COM port pinout:
- Pin 2 - RXD (yellow)
- Pin 3 - TXD (orange)
- Pin 5 - GND (GND)
- Pin 7 - RTS (green)
- Pin 8 - CTS (brown)
- Pins 1 / 4 / 6 / 9 - No Connection
- Cable: 5C * 26AWG, copper, 1.8m, black
- OS Support: Android, Win 10, 8, 7, XP, 2000, Linux, Mac OS
- Support EEPROM, support Vendor ID re-write, support Mprog3.5
- Support FTDI VCP driver and D2XX driver
- CE, RoHS compliance
| Colour | Black |
|---|---|
| Connection | USB Plug A, Serial |
| Pinouts | 9 pin |
| Type | Converter, Cable |
| Length | 1.8 m |
| Interface | Serial, USB 2.0 |
| For | Android, Windows, Mac OS, Linux |
