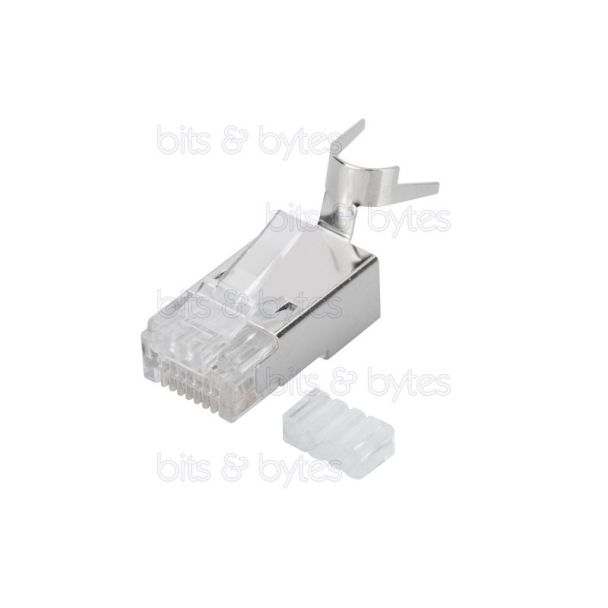

RJ45 CAT6A (AWG 23-22) Shielded Modular Plug for Round Cable

Name: RJ45 CAT6A (AWG 23-22) Shielded Modular Plug for Round Cable
SKU: 370062
Price: 1.758201 EUR
Availability: InStock

In stock

SKU

370062

€1.76

Description

These modular plugs can be used to establish quick and simple connections.

Layout performance: CAT 6A, 10GBase-T
Area of application: Patch cable assembly
Norms: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C
General properties: UL certified
Technical properties:
- Mating cycles female: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5
- Material connector body: Polycarbonat, clear
- Connector contact: Phosphor bronze, brass 0.6 μ gold-plated
- Flammability: UL 94V-2
Physical properties:
- Insertion force: ≤ 30 N
- Diameter Cu-Conductor: AWG (23/1... 22/1)
- Operating temperature: -40 °C to +80 °C
- Current carrying capacity: 1A -1.5A at 50 °C
Crimping tool for Pass-Through Connectors: Digitus DN-94025 Crimping Tool / Network Crimping Tool

Technical details	Layout Performance	CAT 6A, 10GBase-T
	Area of application	Patch cable assembly
	Norms	ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C
General properties	UL certified
Technical properties	Mating cycles female	> 750 acc. to ISO/IEC 11801, IEC 60603-7-5
	Material connector body	Polycarbonat, clear
	Connector contact	Phosphor bronze, brass 0.6 μ gold-plated
	Flammability	UL 94V-2
Physical properties	Insertion force	≤ 30 N
	Diameter Cu-Conductor	AWG (23/1... 22/1)
	Operating temperature	-40 °C to +80 °C
	Current carrying capacity	1A -1.5A at 50 °C
	Model	Plug
	Type of connector	RJ45 8(8)
	Screened	Yes
	Category	6A (IEC)
	Connection type	Crimp
	Special tool necessary	Crimper with compression switch mode Network Crimping Tool for RJ11 - RJ12 - RJ45 Plugs
	Suitable for round cable	Yes
	Suitable for flat cable	No
	Suitable for litz wire conductor	No
	Suitable for solid core	Yes
	AWG-range	23 … 22
